We will respond flexibly to our customers' request with a high technique.

Rolls for pipes

Our techniques have been improved by the customers' opinion and experience.

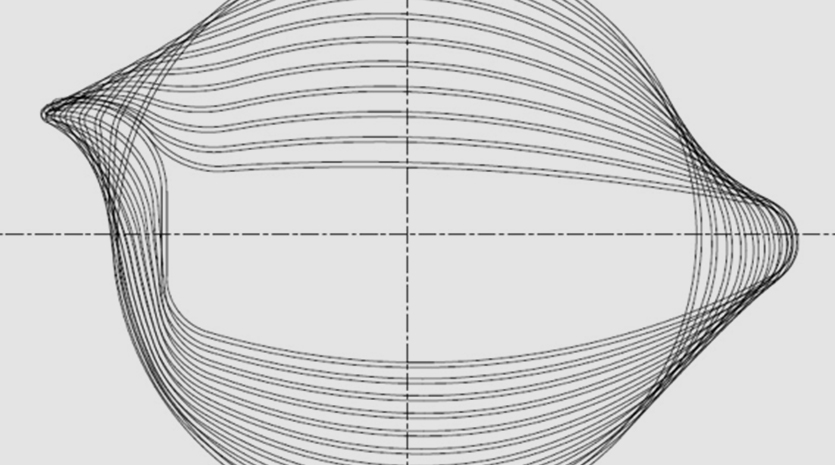

iconPSF(Partial Step Forming)

Feature of this forming method

With an improvement of forming distribution , PSF forming minimized the duplicate process against the tube .
It suppresses fatigue of metal strength and work-hardening which is caused by duplicate process .
As a result , it enables our customer to do difficult secondary process .

Improvement in production efficiency

It makes possible to bend or expand where there used to have defects.

Abandon of heat-treatment process

It enabled us to skip heat-treating of manifold stainless steel pipes for exhaust pipes which requires complicated process.

Example of application

Stainless exhaust pipe (mother pipe) , Titanium pipe, Aluminum pipe, High-t/D pipe, Low-t/D pipe.

To top page
iconFinite Element Analysis

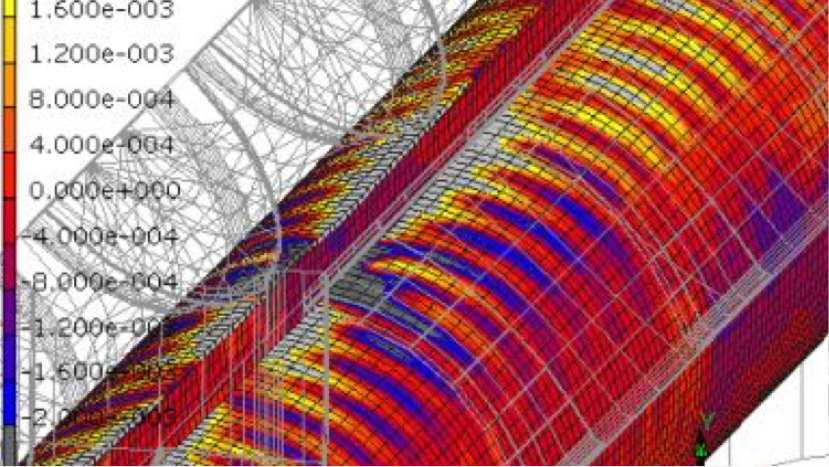

From FEA analysis , we will present you a solution for various problem such like edge wave in detail .
We are able to suggest possible fabrication process to prevent forming defects.
To top page
iconCountermeasure for pipe-end deformation

Pipe-end deformation is an unavoidable problem of roll forming .

What's pipe-end deformation ?

It means a deformation which happens when you cut the pipe after forming . The end-part of cut pipe shows a deformation and its cross-section is quite different from middle-part of the pipe .



Improvement in processing

Major cause of pipe-end deformation is remaining-stress which comes from forming strain (before welding) and sizing strain . Sizing roll is effective in diminishing circumferential direction strain , but axial direction strain will be left as remaining-stress .

Countermeasure for round pipe-end deformation

By pressing from diagonal direction which we normally don't press , remaining-stress will be equalized .

view of demo machine's trial



Countermeasure for rectangular pipe-end deformation

Rectangular pipe-end deformation is mainly caused by imbalance of remaining-stress . It comes from the difference of pipe touching timing between vertical roll and horizontal roll .

view of demo machine's trial

To top page
iconCountermeasure for edge wave of thin material

If you are having trouble with edge wave of thin material , we will be your help . Also , we can design/reconstruct cluster stand .


provided by SANGO Co., Ltd.

From FEA analysis , we can present a solution for edge wave .

To top page
iconCareer

Feel free to contact us even if you want to consult other than those mentioned above .

To top page
Rolls for open section
iconFinite Element Analysis
From FEA analysis , we can present a solution for various problem such like edge wave in detail .
To top page
iconTest forming with a demo machine
We have demo machine next to our plant . Therefore , we are able to reconstruct or regrind rolls immediately .
Comparing with the time of test trial after delivery , it will cut time remarkably .

Demo machine no.1

Shaft diameter:φ40
Number of pass:20
Roll space:500mm

Demo machine no.2

Shaft diameter:φ60
Number of pass:20
Roll space:500mm

To top page
iconStatistics of forming results

Our customers make various shapes utilizing our forming rolls such as round pipes, square pipes, construction materials and automobile parts and so forth.

Pipes
( steel )

Pipes
( stainless )

Exhaust pipes by Sango

Square pipes

Automobile parts

Construction materials

Construction parts

Housing parts
by Chiyoda Metal Stud

Materials for shutter
